Floor Installation for Dance Studios: Creating Springy and Durable Floors
Ask any choreographer about the heartbeat of a dance studio and they will give you a one-word answer: flooring. Whether it is a Royal Academy of Dance syllabus class in Birmingham, a street-dance crew in Manchester, or a Pilates-inspired barre session in Brighton, every movement begins and ends on the surface beneath the dancers’ feet. A springy yet hard-wearing floor protects joints, unlocks performance potential, and defines the studio’s professional credibility. In this in-depth guide we explore how to specify, install and maintain a dance floor that keeps pace with Britain’s most demanding performers.
Table of Contents
Why “Spring plus Strength” Matters in Dance Flooring
Unlike domestic timber boards or laminated gym floors, a dance surface must achieve two seemingly conflicting properties at once: vertical resilience (that coveted spring) and horizontal stability (durability and point-load resistance). The science is simple. When a dancer lands from a jeté the surface needs to depress slightly to absorb kinetic energy before propelling the foot upward again. Too soft, and ankles roll; too hard, and knees and spines take the hit. Industry tests such as EN 14904 and DIN 18032-2 quantify this delicate balance, helping architects defend specifications to building-control officers and insurers.
Shock-Absorbing Layers Explained
- Sprung battens: Traditionally pine or spruce strings, these timber battens sit over neoprene pads or foam strips. The void beneath creates a mini-trampoline effect yet preserves lateral stiffness.
- Panel systems: Engineered panels, normally birch ply, bonded to elastomer pads. These arrive on site pre-fabricated, speeding up installation and ensuring consistent performance across large halls.
- Dual swing floors: Two-layer counter-laid boards with resilient foam in between. Popular in contemporary studios where amplified music demands extra vibration dampening.
Choosing the Right Surface Timber
While vinyl “performance surfaces” exist, UK dancers overwhelmingly prefer timber for its natural warmth and micro-grip. Below we break down the most appropriate species and constructions for high-traffic studios:
| Species | Janka hardness (N) | Feel under foot | Best for |
|---|---|---|---|
| Maple | 6 450 | Silky, light | Ballet & tap |
| Beech | 5 200 | Neutral | Contemporary |
| European Oak | 5 500 | Firm, classic | Multi-use |
| Ash | 5 900 | Responsive | Jazz & modern |
Engineered boards, comprising a hardwood wear-layer bonded to perpendicular softwood or plywood backers, are ideal. They minimise seasonal movement – a key consideration in centrally-heated city studios where humidity fluctuates as dancers perspire and heating cycles surge.
Specification Checklist for UK Dance Studios
- Compliance: Aim for at least 50 percent shock absorption and less than 3.5 mm vertical deflection at centre-point, per Sport England’s guidance notes.
- Panel size: Maximum 2 100 mm × 350 mm to reduce cup and bow in high humidity.
- Surface finish: Hardwax oils with slip resistance between 90 and 110 TRRL pendulum value. Avoid high-gloss lacquers that cause glare.
- Acoustic isolation: Perimeter slip membranes or neoprene flanking strips to decouple boards from walls and limit flanking noise in mixed-use developments.
Step-by-Step Installation Guide
Below we outline a proven sequence followed by the wood floor fitting team at Mr Sander. Follow each phase meticulously to avoid creaks, dead-spots, or premature wear.
1. Sub-Floor Preparation
Concrete substrates must reach a moisture content below 2 percent CM. We recommend a two-part DPM for older Victorian workshops converted to dance spaces. Timber joists, meanwhile, should be level to within ±2 mm over 2 m. Laser levelling pays back in fewer on-site surprises.
2. Installing Sprung Layer
Depending on the chosen system the crew installs either foam-backed batten grids or clip-together panel cassettes. The engineered floor installation service often couples 22 mm birch plywood with 10 mm elastomer pads set at 400 mm centres for class-leading energy return.
3. Laying the Wear Surface
Board orientation should follow the main light source and dancer travel direction. For maximum dimensional stability Mr Sander recommends hardwood floor fitting the planks in random lengths no shorter than 1 200 mm. Secret-nail at 200 mm intervals and glue all tongue-and-groove joints with D3 adhesive for squeak-free performance.
4. Sanding and Finishing
After acclimatisation and initial coarse sanding at 40-grit, progress through 60, 80 and 120-grit passes. Vacuum between every cut. Apply two coats of hardwax oil with a light 150-grit screen between coats. This open-pore finish promotes grip, reduces glare, and simplifies spot repairs compared with film-forming lacquers.
Specialist Systems: Parquet, Kährs and Junckers
Not all studios favour linear plank aesthetics. Geometric parquet blocks evoke heritage ballrooms, while proprietary Kährs and Junckers boards streamline large-scale installations.

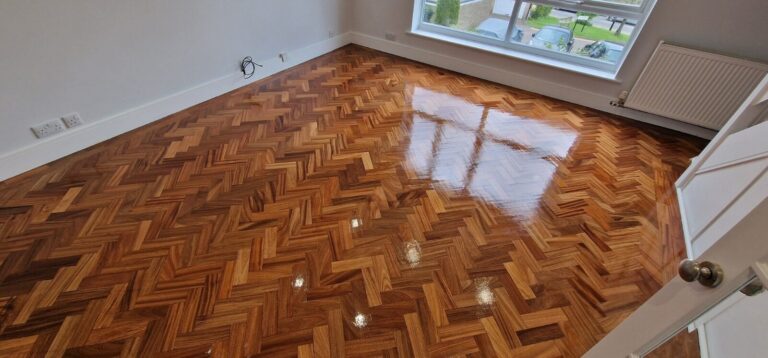

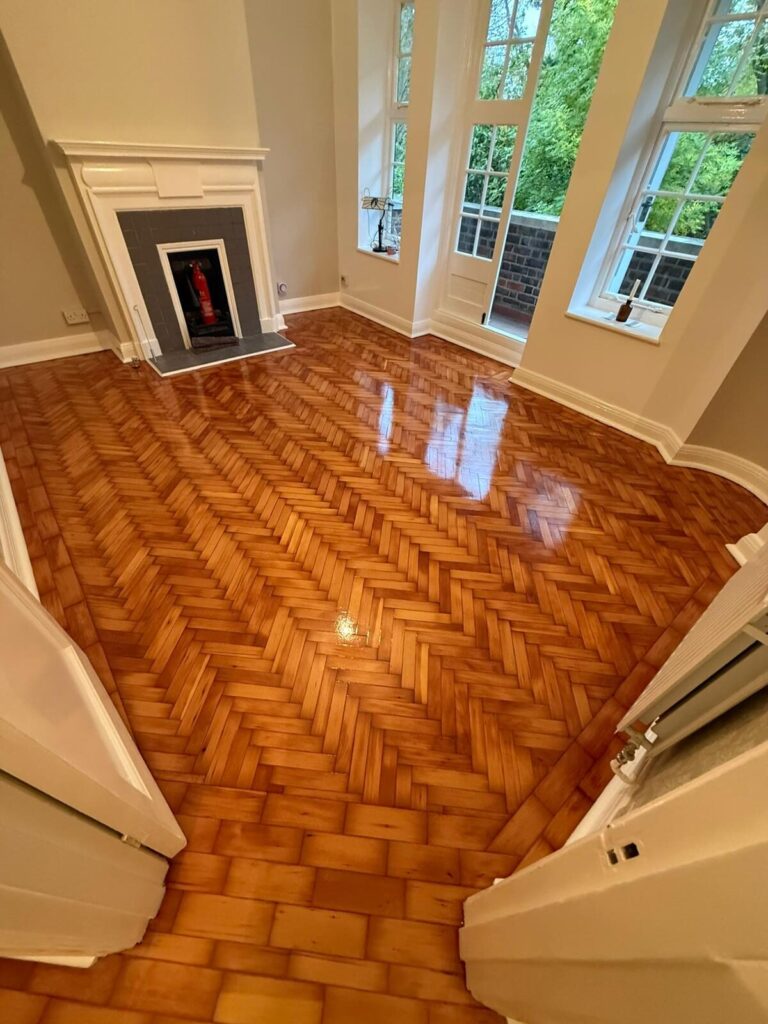

Parquet Blocks
Herringbone or chevron patterns offer excellent shear resistance thanks to their interlocking geometry. Mr Sander’s parquet floor fitting crew bond 14 mm oak blocks with flexible MS polymer adhesive over a ply cradle. A rapid-set primer lets classes resume within 48 hours.
Kährs Floating Systems
Swedish manufacturer Kährs pioneered the Woodloc 5S joint that clicks planks together without nails or glue, saving installation time in venues where downtime costs money. If you are refurbishing a studio on a tight turnaround, Kahrs floor fitting makes logistical sense.
Junckers Sports Floors
Junckers solid beech or maple boards combined with BluBAT or UnoBAT undercarriages remain a staple of UK leisure centres. They achieve EN 14904 category A4 sports performance, making them suitable for dance, basketball and events staging. Consult our Junckers floor fitting experts if your studio doubles as a community hall.
Maintenance: Protecting the Investment
A dance floor is only as good as its upkeep. Adopt the following regime to safeguard both spring and sheen:
- Sweep with an electrostatic mop between classes to remove rosin, hairpins and grit.
- Weekly scrub with a pH-neutral wood floor cleaner, no wetter than a wrung-out tea towel.
- Quarterly buff with a red pad and replenish hardwax oil on traffic lanes.
- Annual professional screen-and-recoat service by the solid wood floor fitting and refinishing team to refresh slip resistance.
Cost Considerations and ROI
Studio owners often fixate on up-front square-metre rates, yet total lifecycle costing reveals value. A properly installed sprung timber system may appear 20 percent more expensive than laminate, but faster recovery from injury, lower heating bills (courtesy of timber’s warm touch temperature), and the ability to sand and refinish the surface up to six times means the amortised cost per class falls dramatically. Moreover, premium studios can command higher rental fees for rehearsal slots, recouping the investment within a few seasons.
Common Pitfalls and How to Avoid Them
- Ignoring Moisture Dynamics
- Damp rising through concrete can warp boards within months. Insist on a moisture barrier and relative humidity logs before installation.
- Random Patch Repairs
- Nailing isolated replacement boards directly to joists breaks the sprung layer. Always lift and refit a full panel zone to maintain uniform bounce.
- Over-sanding the Wear-Layer
- Engineered boards typically allow three to four heavy sands. Exceed that and tongue joints weaken. Engage qualified technicians for each resurface.
Case Study: Converting a Victorian Warehouse in Leeds
When Northern Dance Collective secured a 4 000 square-foot former textile mill, they needed a floor that could handle 12 hours of pointe work, hip-hop, and acro each day. Mr Sander delivered a bespoke dual swing system: 20 × 90 mm ash top layer over a birch ply core, all floating on recycled rubber crumb pads. Result? A 58 percent shock-absorption rating, 35-decibel sound reduction to neighbours, and zero reported overuse injuries after one year of operation.
Environmental Considerations
Sustainability is no longer optional. Specify FSC-certified timber, low-VOC adhesives, and hardwax oils with a high solids content. Waste offcuts can be donated to local community art projects or pelletised for biomass heating.
Future-Proofing: Integrating Underfloor Heating and Smart Studios
Contemporary dance spaces double as yoga studios and event venues. Integrating hydronic underfloor heating beneath the sprung battens maintains a comfortable 21 °C surface temperature without convection drafts. Pair this with IoT sensors that log humidity and occupancy, and you can automate ventilation that protects the wood while keeping energy bills predictable.
Advanced Installation Tips from the Field
Laser Line Mark-Up: Before fixing the first row, snap laser lines parallel to the longest wall and at right angles to structural columns. This tiny investment in time prevents cumulative misalignment that can force awkward rip cuts at the final bay.
Basket Weave Glue Patterns: When bonding engineered boards directly to concrete, spread adhesive in a diagonal basket weave rather than straight beads. The criss-cross ribbons reduce trapped air pockets, enhancing acoustic damping under heavy stomps in flamenco classes.
Staged Acclimatisation: Instead of stacking packs in one corner, distribute them around the studio to reflect micro-climates created by radiators, skylights, and exterior walls. Every pack should sit on spacers for 72 hours with wrapping partially removed to equalise moisture.
Humidity Buffering Plants: Add large-leafed plants such as Monstera deliciosa to corners once the floor is finished. Their transpiration helps keep relative humidity above 40 percent during dry winter heating cycles, reducing shrinkage and squeaks.
Invisible Trap Door Access: Studios with under-floor lighting or AV cabling often require inspection hatches. Rout a shallow rebate under a spare board and fix it with magnets flush to neighbouring boards so the hatch lifts cleanly without visual disruption or trip hazards.
Colour-Coded Coach Screws: When installing timber battens, spray the screw heads in three colours corresponding to sub-frame zones. Future technicians can trace cable runs or isolate problem panels without pulling up half the floor.
On-Site Mock-Up: Always build a 2 m² test panel in the most demanding corner—usually beneath a south-facing window. Monitor its deflection and finish over a fortnight. Tweaks made early save costly remedial work once the main area is locked in.
Frequently Asked Questions
Is refloating possible if I relocate?
Yes. Modern clip-together systems can be unclicked, palletised, and re-laid in a new venue. Our team offers a dismantle-and-reinstall package that preserves the original warranty.
How long before dancers can use the studio after installation?
Where hardwax oils are specified, light foot traffic is possible after 24 hours, though we advise 72 hours before intensive choreography or rolling barres across the surface.
Can I combine vinyl marley with timber?
Absolutely. Many classical schools lay a removable vinyl sheet atop the spring sub-floor for examinations. The critical factor is maintaining breathability so trapped moisture does not stagnate.
What is the average lifespan of a sprung timber floor?
With correct maintenance you can expect 30 years of service, punctuated by five to six professional resurfaces.
Glossary of Key Terms
- Pendulum Test Value (PTV): A measurement of slip resistance carried out with a swinging rubber slider.
- Moisture Vapour Barrier (MVB): A chemical membrane that blocks residual damp migrating into timber.
- D3 Adhesive: A water-resistant wood glue conforming to BS EN 204 for interior humid areas.
- End-grain block: Timber sawn perpendicular to the grain, prized for impact resilience in percussion studios.
- Under-carriage: The composite layers beneath the wear surface that generate spring.
Conclusion
Springy, durable dance floors are a health and safety imperative. By engaging specialists such as the solid wood floor fitting artisans at Mr Sander and following the steps above, studio owners protect their investment and empower every dancer to perform at their peak.
From classic herringbone elegance to state-of-the-art engineered panels, our portfolio proves that beauty and biomechanics can coexist. Book a survey today and step on a floor that works as hard as the artists who rehearse.
Secure your place on our installation calendar now and let us turn your studio dreams into a beautifully sprung reality today.
